Brand Name : LG
Model Number : LM230WF5-TLF1
Certification : Rohs,CE,FCC
Place of Origin : China
MOQ : 10pcs
Price : Negotiation
Payment Terms : T/T,W, Western Union, MoneyGram
Supply Ability : 3000pcs per week
Delivery Time : 4-5 working day
Packaging Details : Industrial packing
Quality : Brand new Original
Package : Original industrial packing
resolution : 1920*1080
style : 30PIN IPS
brightness : 250 CD/M2
color : 16.7M
contrast ratio : 1000 :1
Brand |
---|
Diagonal Size |
Pixel Format |
Active Area |
Bezel Area |
Luminance |
View Direction |
Viewing Angle |
Support Color |
Weight |
Frame Rate |
LG Display |
23.0 inch |
1920(RGB)×1080 [FHD] |
509.184(H)×286.416(V) mm |
513.8(H)×291.0(V) mm |
250 cd/m² (Typ.) |
6 o'clock |
85/85/75/85 (Typ.)(CR≥10) |
16.7M 72% (CIE1931) |
1.98/2.08Kgs (Typ./Max.) |
60Hz |
Model |
Type |
Configuration |
Outline Dim. |
Treatment |
Contrast Ratio |
Response Time |
Operating Mode |
Light Source |
Designed For |
Touch Panel |
LM230WF5-TLF1 |
a-Si TFT-LCD , LCM |
RGB Vertical Stripe |
533.2(H)×321(V) ×10.7(D) mm |
Antiglare, Hard coating (3H) |
1000:1 (Typ.) (TM) |
1.3/3.7 (Typ.)(Tr/Td) |
TN, Normally White, Transmissive |
WLED [2 strings] , 30K hours , W/O Driver |
|
Without |
Interface Type | 30 pins LVDS (2 ch, 8-bit) , Connector |
---|---|
Power Supply | 5.0V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
All Origianl product will be send to customer after full test one by one.
![]() |

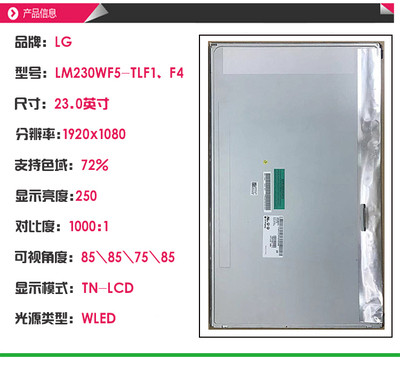

LG 23.8 Inch Widescreen LCD Computer Monitors 1920*1080 Pixels 30 Pin 250cd/m2 LM230WF5-TLF1 Images |
